TBS One PON Port GPON OLT

(0 Reviews)

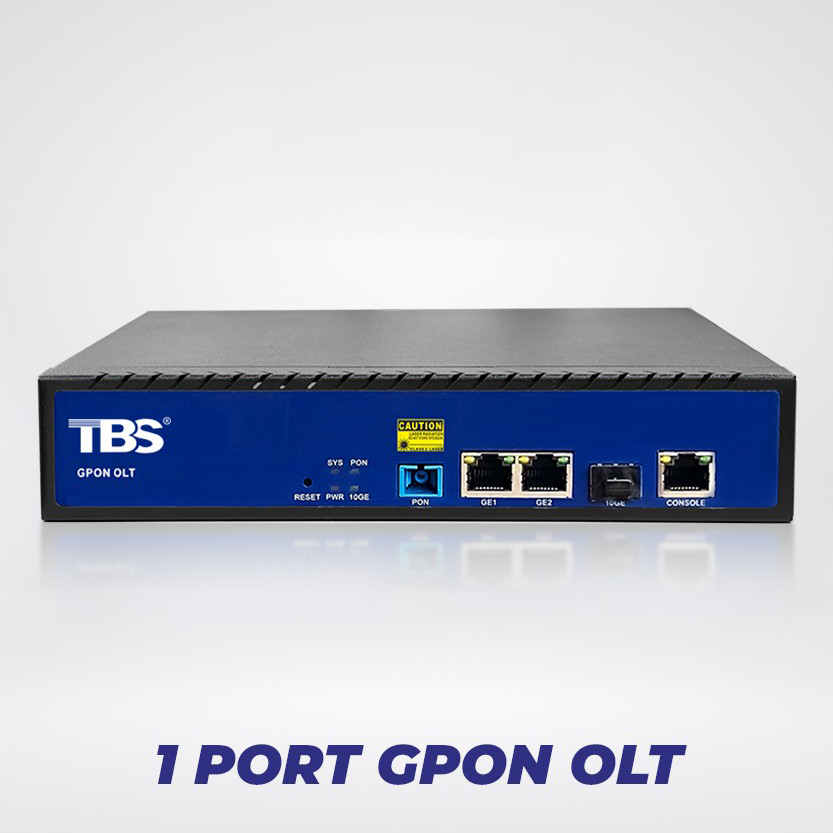

1U box with one PON port GPON OLT
Compliant with ITU-T G984/G.988 standards and China Telecom GPON Technical Requirements
High Performance Chipset
Built-in PON optic module
Mini Metal Shell
Easy Deployment
10GE(SFP+) Uplink
Support remote software upgrade,download firmware to OLT from web/tftp/ftp

PON standard.		GPON ITU-T G.984.x
PON interface	Qty.	1*GPON SFP Ports (Class C+), Receiving sensitivity: ≤ -30dBm(Saturation Optical -12dBm). Power,Transmitting optical power: +3～+7dBmTransmission distance: 20KM. Max splitting ratio1:128
	Speed	Upstream 2.488G Downstream 1.244G
Wavelength	nm	Tx1490, Rx 1310
Uplink	GE	2GE RJ45，110GE SFP
Backplane Bandwidth	Gbps	16G
Port Forwarding Rate	Mpps	23.808
Layer 2		1K Mac address Support 4096 VLANs Support port VLAN Support VLAN tag/Un-tag, VLAN transparent transmission Support storm control based on port Support port isolation Support port rate limitation Support 802.1D and 802.1W Access control list IEEE802.x flowcontrol Port stability statistic and monitoring
Management Ports		1*CONSOLE port
Management Mode		Console/WEB/Telnet/CLI
Lightning protection level	V	Power supply：4K Device Interface：1K
Operating condition	℃	Operating temp: 0 ~ +55
Storing condition	℃	Storing temp: -40 ~ +85
Humidity	%	10~85(non-condensing)
Power Supply	AC	DC 12V/2.5A AC 85~264V, 47/60Hz(Optional)
Power consumption	W	≤20
