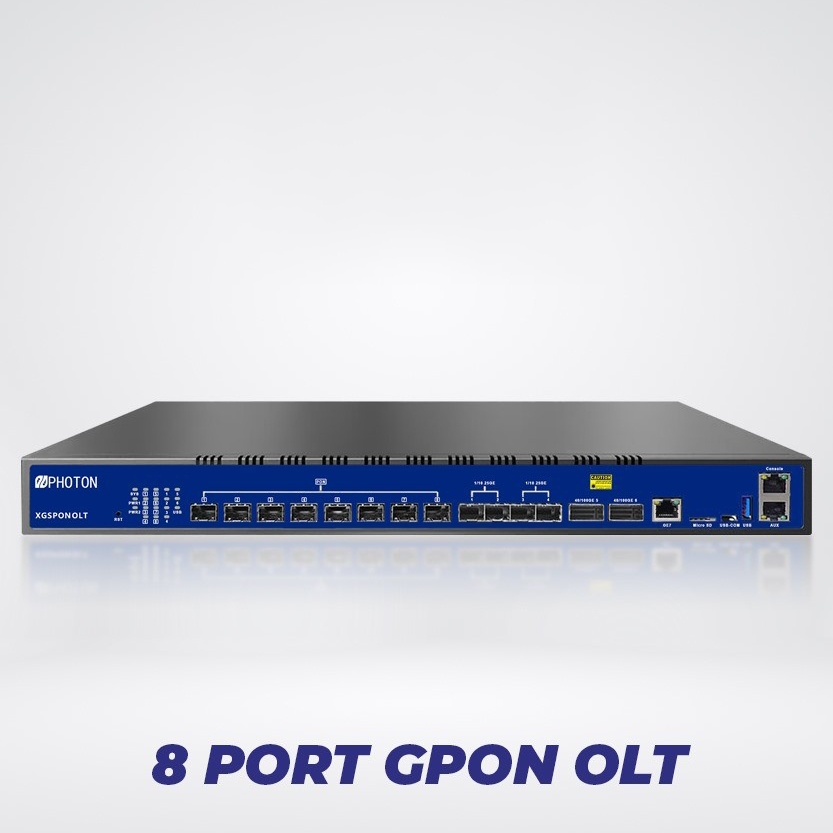

TBS 8 Ports GPON OLT

(0 Reviews)

1U 19-inch standard chassis GPON OLT with 8PON ports
Compliant with ITU-T G984/G.988 standards and China Telecom GPON Technical Requirements
Friendly Web/Telnet/CLI management
Remote online ONT configuration and management
32K MAC address
Support 4096 VLANs, port VLAN, and protocol VLAN;
Support port rate limitation
Support 802.1D and 802.1W
Access control list;
Port stability statistics and monitoring;
Support IGMP snooping
DHCP relay, DHCP snooping
Support ONT auto-discovery, auto-configuration
Support broadcasting storm resistance function.
Support ACL and SNMP to configure data packet filtering flexibly.
Two power supply redundancy design

Product Details

PTF3708 GPON OLT is designed with a Broadcom chipset, which provides 8 GPON ports, 4 GE copper RJ45 Ethernet ports, 2 SFP(GE) and 2 SFP+ (10GE) optical uplink ports. It has high reliability, highly dense broadband access, and robust switching and routing abilities. is a new generation of broadband and multi-service access OLT devices oriented towards the service-integrated network.
PTF3708 OLT integrates with network security, supports data, voice and video, and provides continuous forwarding, graceful restarting and ring protection, improving the work efficiency and securing the maximum running time.
Independent 1U chassis equipment with 8 PON ports, each port supports up to 128 ONUs, and the whole device supports up to 1024 ONUs. Small size and high-density OLT, easy to install, convenient, flexible, and easy to deploy a high-performance broadband access network. It is appropriate to be deployed in a compact room environment. The OLTs can also be used for “Triple-Play”(data, VoIP and IPTV) applications.

Specifications

PON standard		GPON ITU-T G984/G.988
PON interface		8*GPON SFP Ports (Class C+), Receiving sensitivity: ≤-30dBm(Saturation Optical -12dBm). Power, Transmitting optical power: +3～+7dBm Transmission distance: 20KM. Max splitting ratio1:128
Wavelength	nm	Tx1490, Rx 1310
Speed	Gbps	Downstream 2.488G Upstream1.244G
Uplink	GE	4*copper Ethernetports 10/100/1000Mauto-negotiation
	SFP GE	2*SFP(GE)
	SFP 10GE	2* SFP+ (10GE)
USB		1*USB2.0(Type A)
Management Ports		110/100BASE-T out-band port, 1CONSOLE port
Distance		Up to 20KM transmission Distance
Management		WEB/Telnet/SNMP
Backplane	Gbps	92
MAC table	K	32
Multicast		Support IGMP v1/v2/v3 Support IGMP Proxy an Snooping
ONU management		Support ONT auto-discovery/link detection/remote upgrade of software
Broadcast		Support broadcasting storm resistance function
VLAN		4096 VLANs Support port VLAN Support VLAN tag/Un-tag, VLAN transparent transmission
DHCP		Support DHCP Server & DHCP Relay
Security		Port stability statistic and monitoring Access control list
Operating condition	℃	Working temp: -5 ~ +55°C Working humidity:5~90%(non-condensing)
Storing condition	℃	Storing temp: -40 ~ +85°C Storing humidity:5~ 90% (non-condensing)
Power supply	V	AC 85~265
Power consumption	W	≤45W
