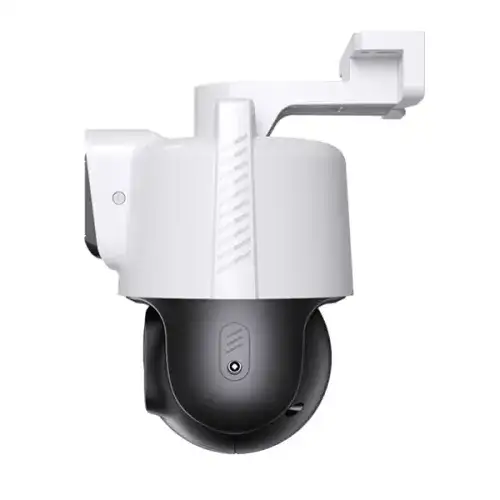

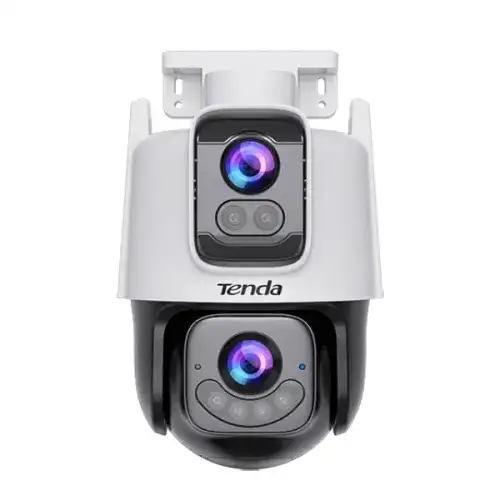

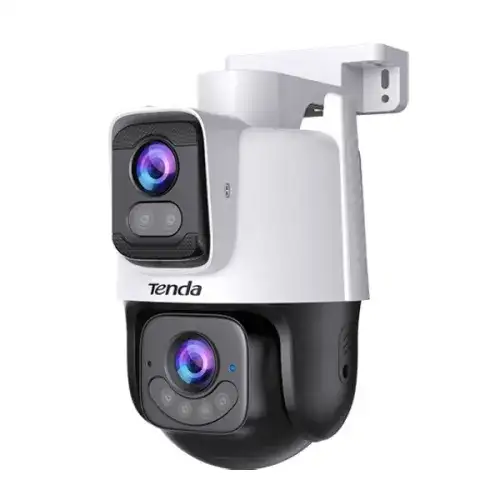

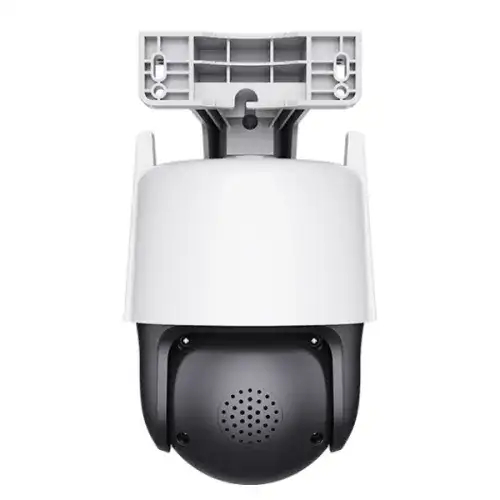

Tenda CH9-WCA 6MP Dual-lens Smart Outdoor Pan & Tilt WiFi Camera
The Tenda CH9-WCA The 6MP Dual-Lens Smart Outdoor Pan & Tilt WiFi Camera is a modern safety solution with a dual-lens system that provides improved coverage and accuracy. The camera has a 1/3 Progressive Scan CMOS sensor with 6MP resolution, resulting in clear and detailed pictures for both day and night monitoring. The Tenda CH9-WCA 6MP Outdoor WiFi Camera's fixed and PT lenses allow it to watch two separate regions at the same time, considerably decreasing blind zones. The fixed lens has an 82.3° horizontal field of view (FOV), and the PT lens has a smaller 51.8° FOV, allowing for more flexible monitoring. The Tenda CH9-WCA 6MP Security WiFi Camera, which comes with 6 infrared lights and 6 high-power spotlights, provides spectacular, full-color night vision in Full Color Mode, as well as Smart Full Color Mode, which instantly converts to color when motion detects. It also has an Infrared Mode for black-and-white images when the spotlights are turned off. To reduce false alarms, the camera includes powerful AI recognition features such as person, vehicle, motion, line crossing, and intrusion detection. With a broad variety of configurable settings, including pan movement from 0° to 260° and tilt movement from 0° to 90°, the Tenda CH9-WCA 6MP WiFi IP Camera provides 360° rotating coverage and preset patrol choices for complete monitoring. The Tenda CH9-WCA IP Camera also integrates Wi-Fi 6 technology for stable and smooth video streaming, with a transmission rate of up to 287Mbps. It features dual audio communication with a built-in mic and speaker, as well as smart alerts with both sound and light to deter intruders. For storage, the Tenda CH9-WCA WiFi Camera supports microSD cards up to 512GB, allowing for extensive recording. With its IP65 weatherproof rating, the Tenda Outdoor Security Camera performs flawlessly in temperatures ranging from -30°C to 60°C (-22°F to 140°F). Whether mounted on a wall, ceiling, or pole, the Tenda CH9-WCA is a top choice for anyone looking for reliable, high-performance outdoor security.
Pan/Tilt Capabilities
The Tenda CH9-WCA is ideal for round-the-clock surveillance because it has two infrared lights and two spotlights. This IP Camera can see up to 30 meters (98 feet) in the dark. The smooth transition between lighting conditions is ensured by the ICR-type day and night shift mode.
Night Vision
The Tenda CH9-WCA is suitable for 24-hour monitoring since it has two infrared lights and two spotlights. This IP Camera can see for up to 30 meters (98 ft) in the dark. The ICR day and night shift mode ensures a seamless transition between illumination situations.
Dual Lenses AI Detection
The Tenda CH9-WCA IP Camera features advanced AI-powered detection with dual lenses and deep-learning algorithms, accurately identifying humans and vehicles while minimizing false alarms. Powered by a Neural Processing Unit (NPU) and a high-performance System on Chip (SOC), this camera efficiently processes real-time data, ensuring reliable and precise security monitoring. The Tenda CH9-WCA stands out for its ability to distinguish relevant activity, offering smarter, more accurate surveillance and enhanced peace of mind for home security.
Specifications
Camera Feature
Image Sensor
1/3 Progressive Scan CMOS sensor
Others
Day and Night: ICR type Bracket Angle Adjustment: Pan:0°to 260°
Lens
Type
Tilt-shift lens
Focal Length
Fixed Lens: 4mm PT Lens: 6mm
Aperture
Fixed Lens:F1.6 PT Lens:F1.6
Angle of View
360°
Physical Specification
Dimension
203mm x 122mm x 62mm(8.0 ×4.8 × 2.4)
Weight
527g(1.16lb)
Power
12 V DC, 1A
Interface
Wi-Fi
Others
FOV Fixed Lens: Horizontal FOV: 82.3°, Vertical FOV: 44.7°, Diagonal FOV: 97.4° PT Lens: Horizontal FOV: 51.8°, Vertical FOV: 28.2°, Diagonal FOV: 60.4° Supplementary Light: 6 IR Lights, 6 Spotlights Supplementary Light Distance: Up to 30 m/100 ft (depending on environment) IR Wavelength: 850nm Night Vision Mode: Smart Mode, Full Color Mode, Black & White Mode Video Encoding Format: Fixed Lens:H.265, H.264, PT Lens:H.265, H.264 Main Stream Resolution: Fixed Lens:2304 ×1296, 1920 × 1080, 1280 × 720 PT Lens:2304 ×1296, 1920 × 1080, 1280 × 720 Sub Stream Resolution: Fixed Lens:640 × 360, PT Lens:640 × 360 Frame Rate: Fixed Lens:1-25fps (2304 × 1296 1-18fps), Default 18fps PT Lens:1-25fps (2304 × 1296 1-18fps), Default 18fps Bit Rate: Fixed Lens:512kbps -- 4096kbps PT Lens:512kbps -- 4096kbps Bit Rate Control: Fixed Lens:CBR,VBR, PT Lens:CBR,VBR Audio Encoding Format: G.711A, G.711U, AAC Audio Sampling Rate: 8 kHz Audio Communication: Two-way Audio, Voice Input Image Enhancement: DWDR, BLC, HLC, 3D DNR Privacy Mask: 4 Areas Ethernet Port: 1 RJ45, 10Mbps/100Mbps auto-negotiation Ethernet port ONVIF: Support Protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, ARP, WebSockets Web Browser: Plug-in free live view: Chrome, Edge, Opera Pan Movement Range: 0°--355° Tilt Movement Range: 0°--90° Preset: 6 Patrol: Panoramic Patrol, Preset Patrol Antenna: Internal antenna Wireless Standard: IEEE 802.11 b/g/n/ax Transmission Rate: Up to 287Mbps Channel Width: 20/40 MHz Modulation: DSSS/OFDM/OFDMA Frequency Band: 2.4GHz: 2412MHz-2472MHz(CH1-CH13) Transmit Power: 2.4GHz: <0.1W(EIRP) Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPA3‐SAE Smart Detection: Both fixed lens and PT lens are supported motion detection, human detection, vehicle detection, line crossing Detection, intrusion detection Smart Linkage: Sound&light Alert, Dual-lens Linkage Tracking DIY Audio: 3 Customized Audios Audio Input: Built-in MIC Audio Output: Built-in Speaker Storage: Built-in Micro SD Card Slot, Up to 512 GB Reset Button: Support LED Indicator: Dual Color(red & blue) LED Indicator Material: Plastic
