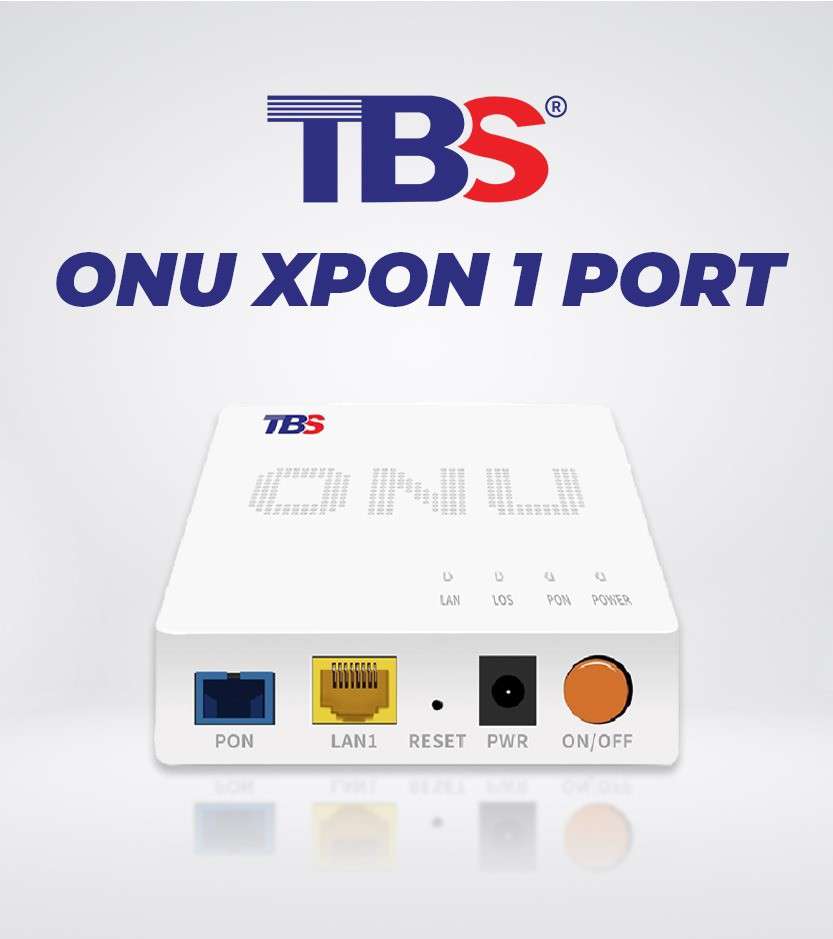

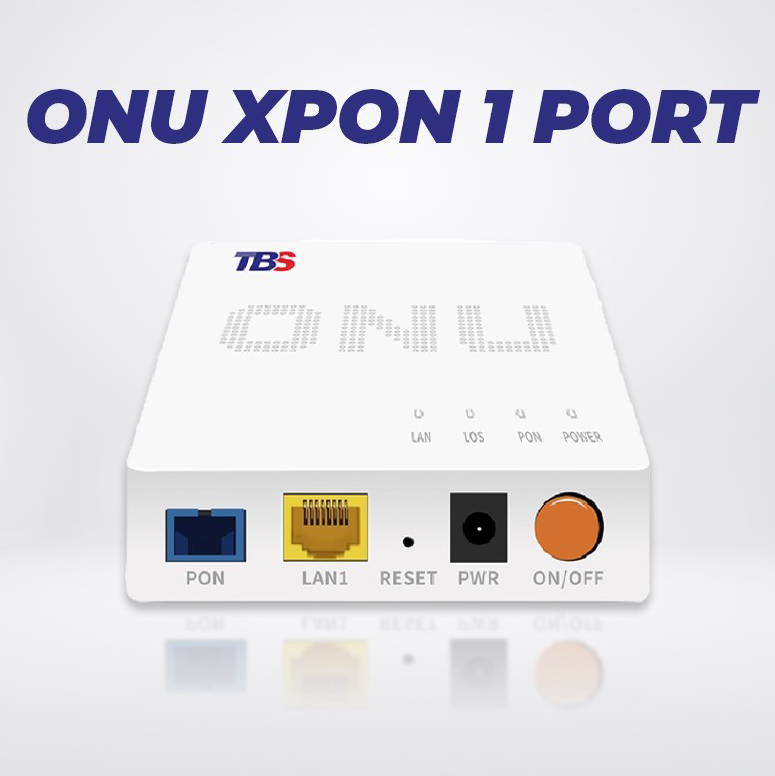

TBS XPON ONU

(0 Reviews)

Compliance with IEEE 802.3ah & ITU-T G. 984.x standard GPON:8 T-CONTs,32 GEM Ports Supports the WEB configuration function Layer 2 Switching, support 802.1Q VLAN, 802.1P QOS, Bandwidth Control, Spanning Tree, etc Supports the configuration of Ethernet interface rates, working modes, MDI/ MDIX auto-negotiation mode, and Pause flow control Supports performance statistics on all Ethernet lines, and multicast IGMP snooping Supports the L2 wire speed forwarding. Supports the AES-128 algorithm for data encryption of downlink data

Product Details

TBS Data GPON ONU series Includes Wifi or not is one of the GPON optical network unit design to meet the requirement of the broadband access network. It applies in FTTH/FTTO to provide the data, video service based on the GPON network.

The TBS ONU provides one 10/100/1000Mbps auto-adapting Ethernet port and features high-performance forwarding capabilities to ensure an excellent user experience with internet and HD video services. The BT-125ER provides a perfect terminal solution and future-oriented service-supporting capabilities for FTTH deployment. It is compatible with third-party OLTs, such as Huawei/ZTE/Fiber Home/Alcatel-Lucent.

Fiber Optic Internet 1ge Xpon Onu Fttx Xpon Modem

Specifications

Size（LWH）	90mm (L) ×90mm (W) ×24mm (H)
Optical signal access	1*GPON
User interface	1GE
Indicator light	POWER/PON/LOS/LAN
Button	Power switch Button, Reset Button
Weight	95g
Power adapter input	100V～240V AC，50Hz～60Hz
PowerSupply requirement	12V DC，0.5A
Power consumption	6w
Working temperature	-10°C ~ +45°C
Environment humidity	5% ~ 95% (Non-condensing)
PON Interface
Module type	Class B+ SC/UPC
Working wavelength	up 1310nm，down 1490nm
TX Optical power value	0.5～4dBm
RX Optical power sensitivity	-27dBm
Transmission distance	0～20km
Transmission rate	Uplink 1.244Gbps；downlink 2.488Gbps
Ethernet interface
Interface type	RJ45
Interface parameters	1 x 10/100/1000Mbps auto adaptive Ethernet interfaces
