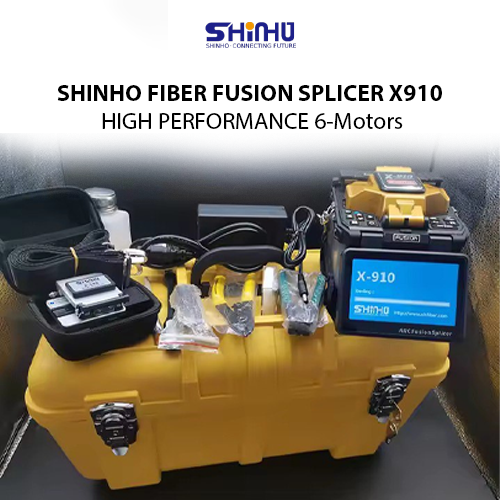

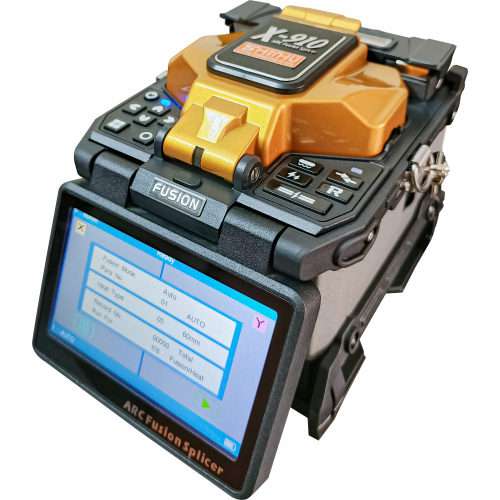

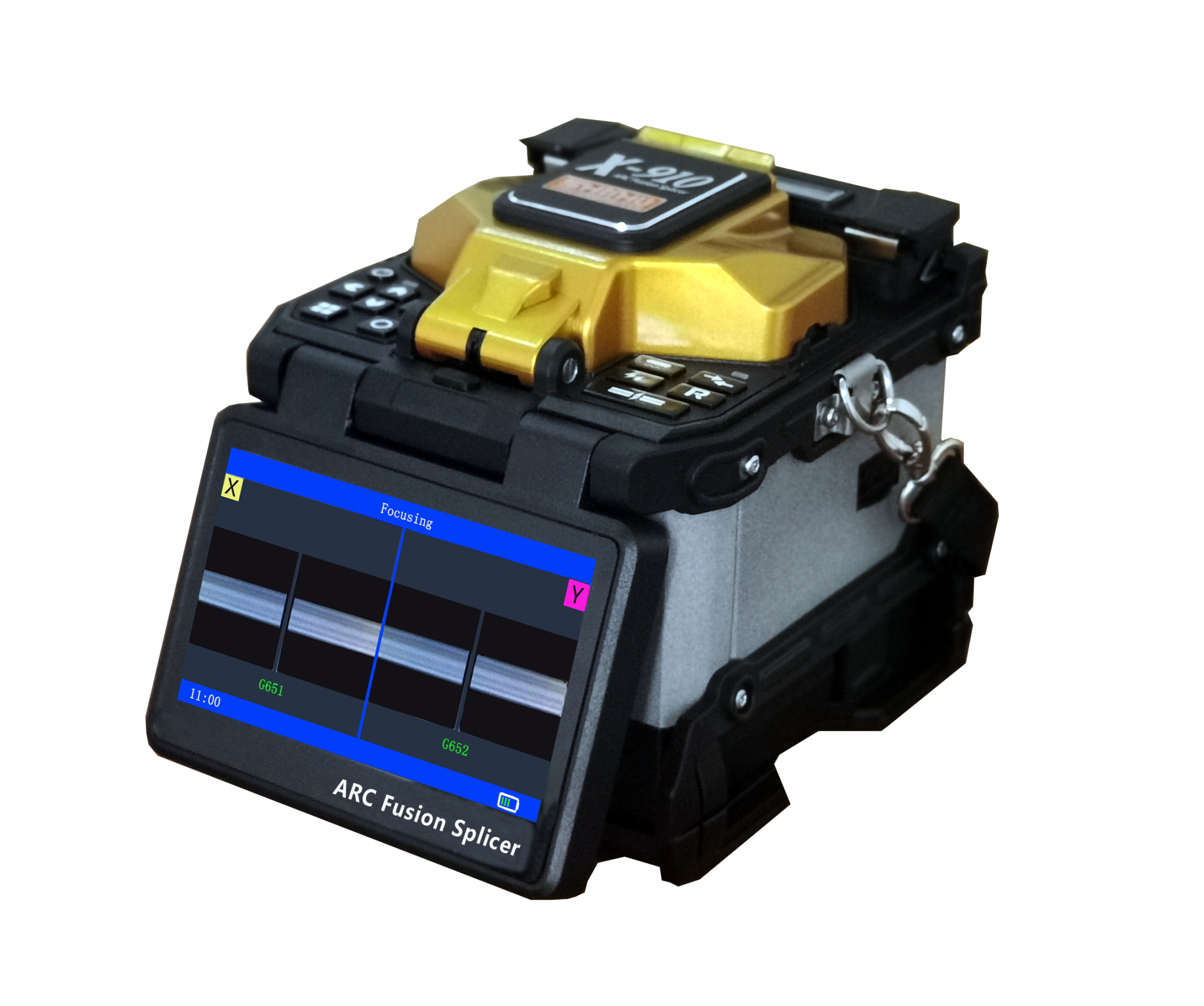

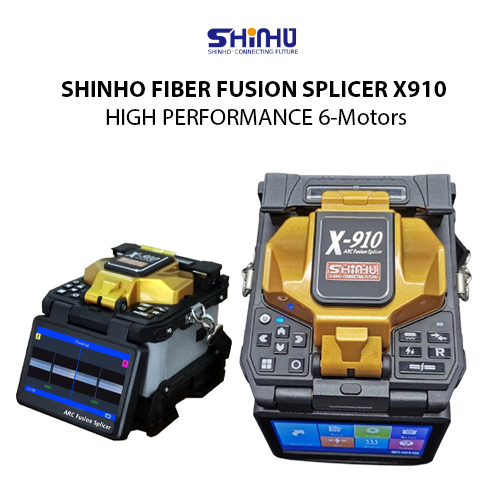

SHINHO X910 High Performance 6MOTOR Fiber Fusion Splicer

Product Details

• 6 motors, accurate core alignment
• Identifying fiber types automatically
• Mirrorless design, easy to maintain
• Upgraded CPU with 30% power saving
• 6 seconds of typical splicing and 16 seconds of heating
• Automatic & real-time ARC & fiber position calibration
• Industrial design, anti-shock, anti-dust & waterproof
• Real-time heating temperature monitoring
• Suitable for bare fiber, patch cords, drop cable, etc.

Specifications

SHINHO SPLICER X910 High Performance 6-MOTOR Fiber Fusion Splicer

High Performance Fiber Fusion Splicer

6 motors, accurate core alignment

Identifying fiber types automatically

Mirrorless design, easy to maintain

Upgraded CPU with 30% power saving

6 seconds of typical splicing and 16 seconds of heating

Automatic & real-time ARC & fiber position calibration

Industrial design, anti-shock, anti-dust & waterproof

Real-time heating temperature monitoring

Suitable for bare fiber, patch cords, drop cable, etc.

Alignment method: 6 motors, core-to-core alignment

 Applicable fiber SM(G.652)，MM(G.651)，DS(G.653)，NZDS(G.655), BIF(G.657)

Cladding diameter 80 -150μm

Coating diameter 160–1000μm

Cleaved length 5-16mm ( coating diameter ＜ 250um), 16mm

Typical splice loss SM: 0.02dB； MM: 0.01dB； DS: 0.04dB ；NZDS: 0.04dB

Return loss ＞60dB

Splicing program 40 groups

Operation mode: Manual/ Automatic

Auto-heating Available

Typical splice time: 6 seconds

Typical heating time is 18 seconds for 60mm and 40mm shrinkable sleeves

Fiber magnification 250X(X or Y view), 125X(X and Y view)

Viewing display: Dual high sensitivity camera, 5-inch 800*480 LCD Monitor

Data storage: 4000 groups of data records

Loss evaluation Available

Tension test 1.8～2.25N

The interface GUI menu is easy to operate

Battery capacity 5200mAh Li-battery, 300 cycles of splicing and heating

Power supply Adaptor, input: AC100-240V(50/60HZ),output: DC11-13.5V

Electrode life: More than 4000 ARC discharges, easy to replace

Terminals with a USB 2.0 port, for software upgrading, record exporting

Operating condition Humidity:0-95%,Temperature:-10℃～+50℃;Wind:max15m/s

Dimension/Weight 156mm (L)×141mm (W)×156mm (H) /2.45kg (including battery)
