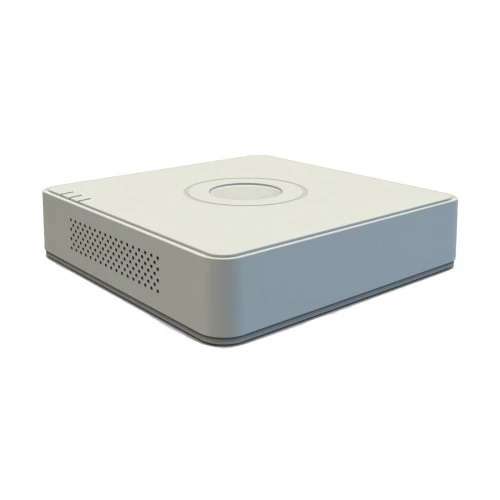

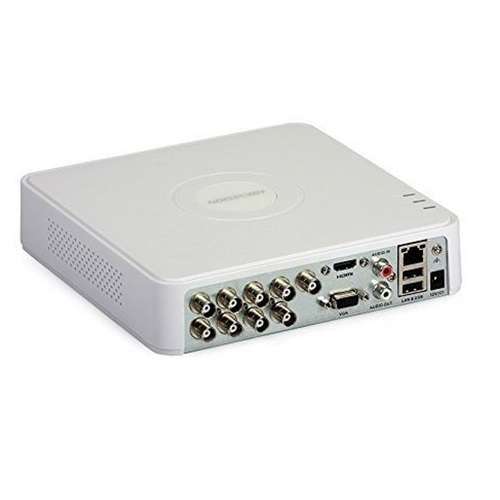

Hikvision DS-7108HGHI-K1 8-CH Turbo HD 1080P DVR

(0 Reviews)

Key Features

Model: DS-7108HGHI-K1
H.265 Pro+/H.265 Pro/H.265 video compression
HDTVI/AHD/CVI/CVBS/IP video input, Audio via coaxial cable
Max. 1200 m for 720p HDTVI signal
Encoding ability up to 1080p lite @ 25/30 fps

Product Details

Hikvision DS-7108HGHI-K1 8-CH Turbo HD 1080P DVR

The Hikvision DS-7108HGHI-K1 DVR supports H.265 Pro+/H.265 Pro/H.265 video compression. It accepts DVI/AHD/CVI/CVBS/IP video input and audio through coaxial cable. It can accept up to ten IP camera inputs (up to 5 MP). This DVR Encoding capability is up to 1080p light @ 25/30 fps and Max. 1200 m for 720p HDTVI signal. The Hikvision DS-7108HGHI-K1 DVR has a 01-year warranty.

Specifications

Audio and Video
IP Camera Input	Up to 6/12/24-ch IP camera inputs (up to 6 MP),
Display
Interface	8-channel, BNC Interface (1.0Vp-p, 75 omega)
Resolution	3 MP/ 1080p/ 720p/ VGA/ WD1/ 4CIF/ CIF
Recording
Compression	G.711u
Resolution	When 1080p lite mode not enabled: 720p/WD1/4CIF/VGA/CIF
Bit Rate	64 Kbps
Playback And Backup
Sync Playback	8-Channel
Network
Interface	1, RJ45 10/100 Mbps self-adaptive Ethernet interface
Network Function	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF
Storage
HDD Mode	Number HDD Interface (SATA): 1 SATA Max HDD Support (GB,TB) Up to 6TB capacity for each disk
Auxiliary Interface
USB	USB Port: 2 x USB2.0
Power
Power Supply	12 VDC, 1.5 Amp
Component Environment
Storage Conditions	Max. Storage Support: 6TB
Construction
Dimensions	260 × 222 × 45 mm (10.2 × 8.7 × 1.8 inch)
Net Weight	1 kg
