12 Ports 10G L3 Manageable Switch

(0 Reviews)

Support IEEE 802.1d, IEEE 802.1w, IEEE 802.1s, IEEE 802.1p, IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3ae standard;

L3 Management, support DHCP Server, QoS, ACL control, support SNMP V1/V2/V3, IGMP Snooping v1/v2;

Support STP/RSTP/MSTP（ERPS), loop detection and self-healing, support remote loop back monitoring and control（802.3ah OAM）;

Support multiple VLAN divisions, MACc VLAN, Protocol VLAN, Private VLAN;

Support IP address + MAC address + VLAN + Port binding, DHCP Snooping, support IP source and DAI protection;

Support IPV4/IPV6.RIPv1/v2 OSPF

Product Details

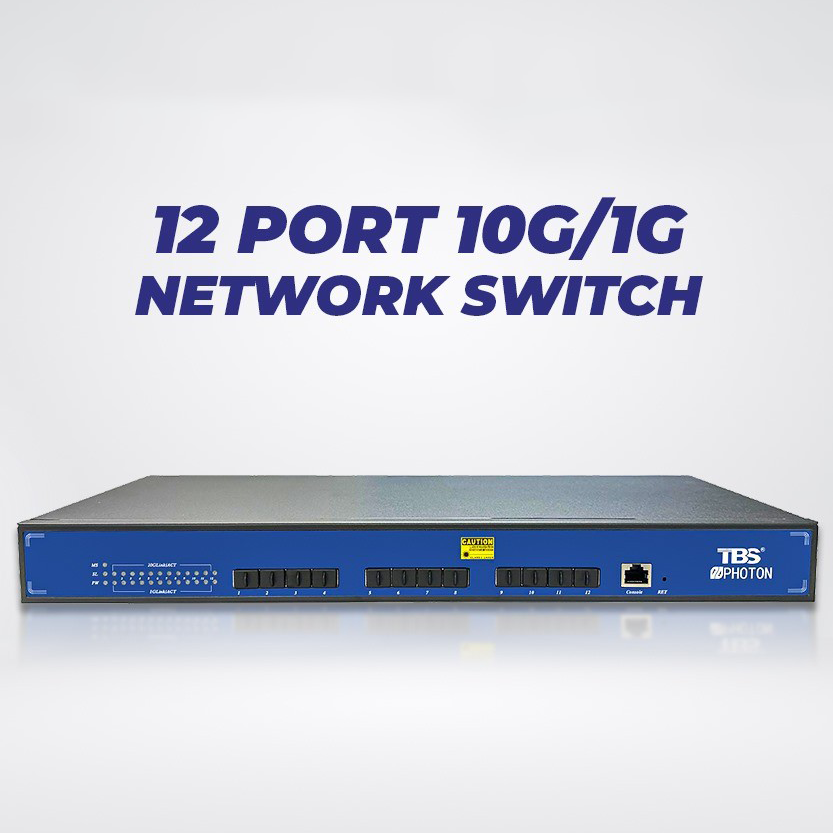

PTD1712-12X-NM is a 12-port 10G L3 Management Ethernet Switch, ssupporting12* SFP+ ports, 1* RJ45 console port.

Perfect security control strategy and CPU protection policy, improve product fault tolerance,

ensure stable network operation and link load balancing; the device supports automatic DoS attack prevention.

SNMP, IEEE 802.1q, spanning tree, rapid generation tree protocol, link aggregation, and other functions.

Advanced security features and advanced Quality of Service (QoS, can be used as a core,

distribution or access layer switch, with high port density, easy to manage, it is an ideal choice for a variety of commercial network applications

Specifications

Power	AC100-240V 50/60Hz DC 12V
Ethernet	12* 10G SFP+ Ports 1* RJ45 Console Port
Performance
Bandwidth	240Gbps
Packet Buffer Memory	178.56Mpps
DDR SDRAM	128MB
Flash Memory	16MB
Package cache	16MB
MAC Address	32K
Jumbo Frame	12K
VLANs	4096
MTBF	100000 hours
Standard
Network Protocol	IEEE802.3 (Ethernet) IEEE802.3u (Fast Ethernet) IEEE 802.3ab (Gigabit Ethernet) IEEE 802.3z (Gigabit Ethernet optical fiber) IEEE 802.3ae (10G Ethernet) IEEE802.3x (Flow control) IEEE 802.3az (Energy Efficient Ethernet) IEEE 802.3ad (link aggregation) IEEE 802.1AB LLDP/LLDP-MED (Link Layer Discovery Protocol) IEEE 802.1D Spanning Tree Protocol(STP) IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) IEEE 802.1s Multiple Spanning Tree Protocol (MSTP) IEEE 802.1Q (Virtual Local Area Network) IEEE 802.1p (VLAN Tags) IEEE 802.1X (User Authentication)
Industry Standard	EMI: FCC Part 15 CISPR (EN55032) class A EMS: EN61000-4-2 (ESD), EN61000-4-5 (Surge)
Network Medium	Multi-mode Fiber: 50/125, 62.5/125, 100/140um Single-mode Fiber: 8/125, 8.7/125, 9/125, 10/125um
Certification
Safety Certificate	CE, FCC, RoHS
Environment
Working Environment	Working Temperature: -10~50°C Storage Temperature: -40~70°C Working Humidity: 10%~90%, non-condensing Storage Temperature: 5%~90%, non-condensing
Function Indicator
Indicator	PWR (Power Indicator)，SYS (system Indicator), Link (Link Indicator), ACT (ACT Indicator)
PWR（Power indicator）	On: Powered on Off: Powered Off
SYS（System light）	On: System normal, Flashing: system startup
10G（Link Light）	On: 10G Link
ACT(Data Light)	On: Connecting; Flashing: Data Transmit; Off: Disconnect
Physical Specifications
Structure Size	Product Dimensions: 44020544mm Package Dimensions: 50029085mm Product N.W: 2.50 KG Product G.W: 3.12 KG
Packing Info	Carton Dimensions: 520445310mm Packing Quantity: 5 PCS Packing weight: 16.6 KG
Power Voltage	Voltage: AC100-240V, 50/60Hz Power supply: 12V8A
Package List	Switch: 1 Set, Instruction manual: 1 PC, Certificate: 1 PC, Power cord: 1 PC Serial cable: 1 PC, Rack ear: 1 Pair
